10_s_TIMER

Published:2009/7/12 22:09:00 Author:May | From:SeekIC

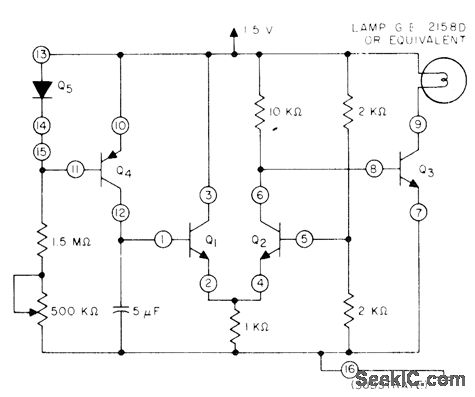

CA3096 transistor array provides all needed active devices, 5-μF capacitor charges through Q4 until it turns on bistable switch Q1-Q2, which then triggers Q3 to deliver current to lamp load to indicate end of timing interval.- Circuit ldeas for RCA Linear ICs, RCA Solid State Division, Somerville, NJ, 1977, p8.
