0_10kHz_to_0_10VDC_

Published:2009/7/1 20:06:00 Author:May | From:SeekIC

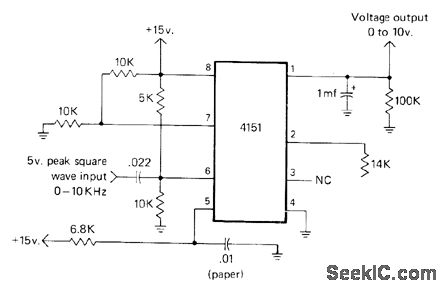

Raytheon 4151VFC voltage-to-frequency converter is used in reverse as linear frequency-to-voltage converter.Applications include use in pairs as complete data transmission system, for remote monitoring of DC voltage such as output of SWR bridge located at junction of antenna with transmission line. DC voltage is changed into audio volt-age at remote location, sent over lines, then changed back to DC at readout location. Line characteristics do not affect frequency of audio signal.-J. J. Schultz, A Voltage-to-Frequency Converter IC with Amateur Applications, CQ, Jan. 1977, p 39-41 and 75.
