Dual flashing light string circuit ( 1 )

Published:2012/9/3 22:20:00 Author:Ecco | Keyword: Dual , flashing light string

Dual flashing light string circuit ( 1 )
As shown in the figure, it is a two-way flashing light string controller. After getting power, it can make light strings E1 and E2 flash alternately, this circuit can also be transformed commercially double-headed ( lights) wall lamp, and two lights will flash alternately.   (View)

View full Circuit Diagram | Comments | Reading(1018)

Dual flashing light string circuit (3 )

Published:2012/9/3 22:09:00 Author:Ecco | Keyword: Dual, flashing light string

Dual flashing light string circuit (3 )

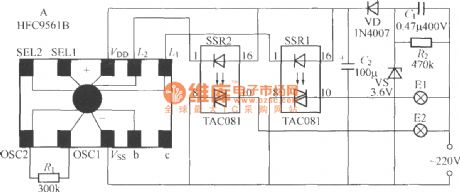

As shown in the figure, it is a dual flashing string lights controller which uses HFC9561B audio integrated circuit skillfully. HFC9561B ( produced by Wenzhou Fenghua Electronic Co., Ltd.) is also known as the four-tone alarm integrated circuit.   (View)

View full Circuit Diagram | Comments | Reading(927)

Four-way flashing light string circuit ( 4 ) ( CS9801 )

Published:2012/9/3 20:56:00 Author:Ecco | Keyword: Four-way , flashing light string

Four-way flashing light string circuit ( 4 ) ( CS9801 )
Four-way flashing light string circuit ( 4 ) ( CS9801 )

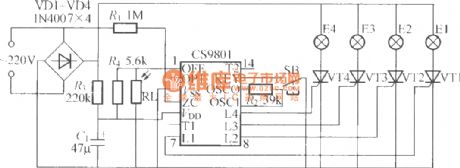

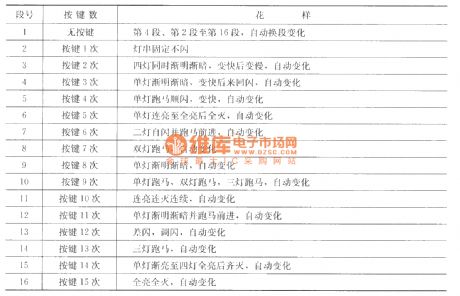

As shown in figure, it is a four-way flashing light string controller CS9801 with ASIC, it has four outputs; single-key cycle can control 16 kinds of tricks, and choose 16 paragraphs or the first 8 paragraphs of patterns, the following 8 paragraphs of patterns. The circuit also has a photo-resistor RL which allows light string to be automatically turned off during the day, flash at night; This circuit is very suited to control a Christmas tree. RL can choose the MG45 photosensitive resistor or thyristor MCR100-8. The following table shows the 16 patterns stored in CS9801.   (View)

View full Circuit Diagram | Comments | Reading(1150)

Four-way flashing light string circuit ( 5 ) ( 5G169 )

Published:2012/9/3 21:13:00 Author:Ecco | Keyword: Four-way, flashing light string

Four-way flashing light string circuit ( 5 ) ( 5G169 )

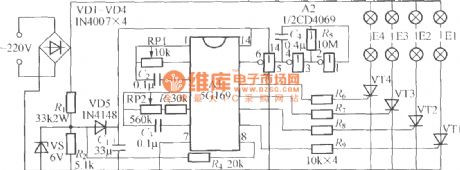

As shown in the figure, it is a four-way flashing light string controller with 5G169 light controlled ASIC produced by Shanghai Components factory 5. It can make the four-way light string E1 ~ E4 be lit in a cycle, and it can automatically change the brightness and cycle direction of the light string. Regulating RP1 can change the the lantern string flowing rate, adjusting RP2 can change the degree of light string's gradual brightness ( dimming fade or bright ); thyristor can use MCR100-8.   (View)

View full Circuit Diagram | Comments | Reading(908)

Four-way flashing light string circuit ( 6 ) ( SH-123 )

Published:2012/9/3 21:26:00 Author:Ecco | Keyword: Four-way , flashing light string

Four-way flashing light string circuit ( 6 ) ( SH-123 )

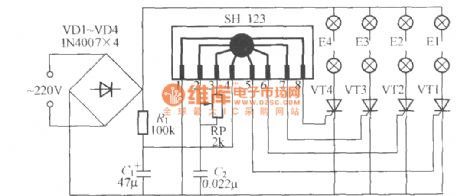

As shown in the figure, it is a water-flowing and horse-running four-way flashing light string controller, and its core component is an SH-123 holiday light controlled ASIC. VT1 ~ VT4 are available in MCR100-8 thyristor, and each road lantern's power should be below 100W.   (View)

View full Circuit Diagram | Comments | Reading(2872)

Four-way flashing light string circuit ( 8 )

Published:2012/9/3 21:30:00 Author:Ecco | Keyword: Four-way , flashing light string

Four-way flashing light string circuit ( 8 )
As shown in the figure, it is a multi - pattern four-way flashing light string controller with ASIC SH-803, SH-803 has eight kinds of program methods and a variety of dimming speeds, and it can select a program pattern by trigger controlling terminal. VT1 ~ VT4 should use MCR100-8 thyristors; pressing SB can choose any patterns change.   (View)

View full Circuit Diagram | Comments | Reading(4944)

Dimming light circuit with gradually brightening and darkening functions

Published:2012/8/31 1:05:00 Author:Ecco | Keyword: Dimming light, gradually brightening , darkening functions

Dimming light circuit with gradually brightening and darkening functions

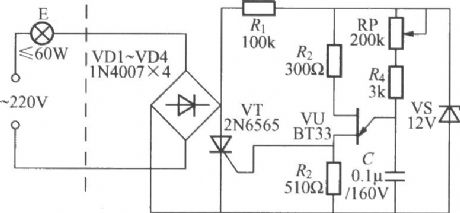

As shown in Figure, itis a novel thyristor dimming light circuit, it not only can used for dimming, and every time when you turn on the light, the light canbe changedfrom dark to bright; when you turn off the light, thelight can be changed frombright to dark gradually.   (View)

View full Circuit Diagram | Comments | Reading(1143)

Four-way flashing light string circuit (9) (M80056B)

Published:2012/8/31 1:17:00 Author:Ecco | Keyword: Four-way, flashing light string

Four-way flashing light string circuit (9) (M80056B)

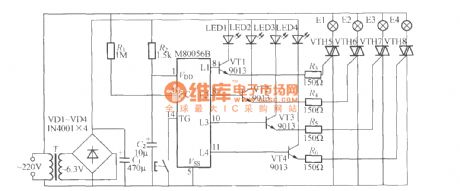

As shown in the figure, it is the high-power eight-figure four-road flashing light string controller with M80056B light controlled IC . VTH1~VTH4 should use 12A/600V thyristors; SB is the switch for lantern string pattern selection, once press SB one time, lantern string changes a cycling pattern.   (View)

View full Circuit Diagram | Comments | Reading(1336)

Multicolor advertising lamp box with emitting music circuit (1)

Published:2012/8/31 2:14:00 Author:Ecco | Keyword: Multicolor, advertising lamp box , emitting music

Multicolor advertising lamp box with emitting music circuit (1)
Multicolor advertising lamp box with emitting music circuit (1)

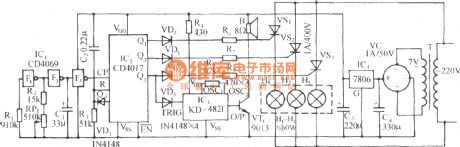

The circuit is shown in the figure. It includes the clock pulse generator, counter/divider circuit, thyristor trigger Lantern circuit, music circuit and AC step-down rectifier circuit and so on. Red, green and blue lights are placed in a glass box, it will emit soft light with three colors of red, green, blue in an order and broadcast world famous music one by one to attract more customer. F1~F3 are three gates of six inverter IC CD4069, and F1, F2 and R1,R2,C1 form a self-excited harmonic oscillator with oscillation frequency is   (View)

View full Circuit Diagram | Comments | Reading(756)

Single-way thyristor dimming light circuit(1) with unijunction transistor trigger

Published:2012/8/30 22:46:00 Author:Ecco | Keyword: Single-way , thyristor , dimming light , unijunction transistor, trigger

Single-way thyristor dimming light circuit(1) with unijunction transistor trigger
In order to improve the stability of voltage onthe lamp, it can use the unijunction transistor trigger circuit shown in the figure.   (View)

View full Circuit Diagram | Comments | Reading(1724)

Single-way thyristor dimming light circuit(2) with unijunction transistor trigger

Published:2012/8/30 22:43:00 Author:Ecco | Keyword: Single-way thyristor, dimming light, unijunction transistor trigger

Single-way thyristor dimming light circuit(2) with unijunction transistor trigger
As shown in the figure, VT1 can use 3CT1 or MCR100-8 single-way transistor.   (View)

View full Circuit Diagram | Comments | Reading(1884)

Single-button digital dimmer light circuit

Published:2012/8/30 20:56:00 Author:Ecco | Keyword: Single-button , digital, dimmer light

Single-button digital dimmer light circuit

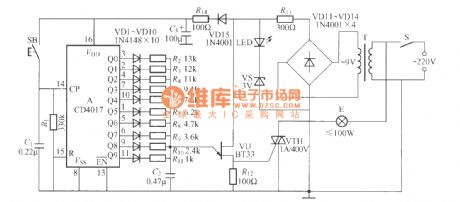

It uses the thyristor trigger circuitcomposed ofCD4017 digital circuitand single-junction transistor,and it hadten block ofadjustable brightness, it is easy to use.   (View)

View full Circuit Diagram | Comments | Reading(3233)

Single-way flashing light string circuit (1)

Published:2012/8/30 21:06:00 Author:Ecco | Keyword: Single-way, flashing light string

Single-way flashing light string circuit (1)
As shown in the figure, it is a simple single-way flashing light string controller which is easy to make, it can make the light string gap flash, so itcan be usedfor store or home decoration.   (View)

View full Circuit Diagram | Comments | Reading(908)

Single-way flashing light string circuit (2)

Published:2012/8/30 21:13:00 Author:Ecco | Keyword: Single-way, flashing light string

Single-way flashing light string circuit (2)
As shown in the figure, it is a simple single-way flashing light string controller which is easy to make, and it is mainly composed of novelty flashing light-emitting diode as core component.   (View)

View full Circuit Diagram | Comments | Reading(1102)

Single-way flashing light string circuit (3)

Published:2012/8/30 21:38:00 Author:Ecco | Keyword: Single-way, flashing light string

Single-way flashing light string circuit (3)

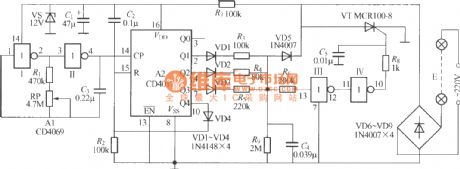

As shown in the figure, it is a single-way flashing controller composed of digital IC, it can make the light string flash continuously in the cycle of strong light → stronger → weak light → turning off → highlight ... ... , the flashing is no longer dull, but full of freshness. And it only has two leading-out terminals which can be directly connected to the colored light string circuit in series, and it is convenience to wire and use.   (View)

View full Circuit Diagram | Comments | Reading(790)

Dual-way flashing light string circuit with music (MC81P)

Published:2012/8/31 2:02:00 Author:Ecco | Keyword: Dual-way , flashing light string, music

Dual-way flashing light string circuit with music (MC81P)

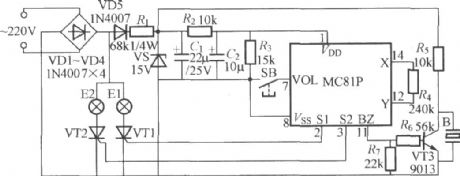

As shown in the figure, it is a novel flashing light string controller for Christmas tree decorations, it has two-way flashing output with storing 6 songs, and it is characterized by alternately synchronized flashing of two string lights with music rhythm, and it uses buttons to control the sound of music and the skipping of light. VT1 and VT2 can choose 0.8~1A/400~600V small plastic one-way thyristor such as 2N6565, MCR100-8; b is Piezoelectric ceramic speaker or 27mm common Piezoelectric ceramic plate.   (View)

View full Circuit Diagram | Comments | Reading(1090)

Four-way flashing light string circuit with music (CS9802)

Published:2012/8/31 1:20:00 Author:Ecco | Keyword: Four-way , flashing light string, music

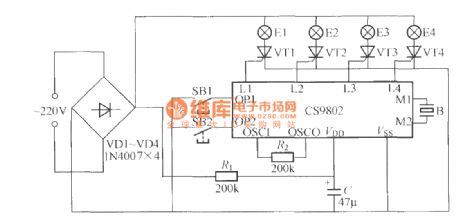

Four-way flashing light string circuit with music (CS9802)
As shown in the figure, it is a four-way flashing light stringcontroller with music, and its core component is the CS9802 music colouredlantern control IC.   (View)

View full Circuit Diagram | Comments | Reading(916)
