ad_dc_INDICATOR

Published:2009/7/9 5:22:00 Author:May | From:SeekIC

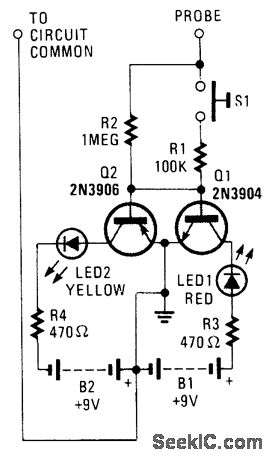

By using two switching transistors and two LEDs, this circuit can distinguish low-level ac and dc sig-nals. If the red LED illuminates, the signal is positive dc. If the yellow LED lights, the signal is negative dc.If the signal is ac, both LEDs will light.
