VIDEO_MODULATOR_CIRCUIT

Published:2009/7/1 21:28:00 Author:May | From:SeekIC

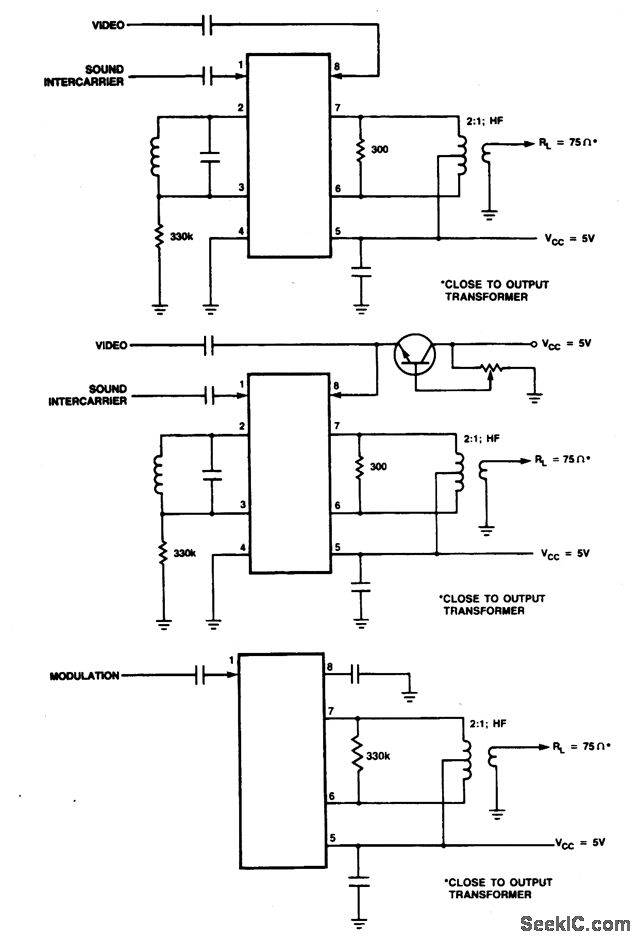

These are modulator circuits for modulation of video signals on a VHF/UHF carrier.The circuits require a 5V power supply and few external components for the negative modulation mode. For positive modulation an external clamp circuit is required. The circuits can be used as general-purpose modulators without additional external components. The IC is TDA6800.
