UV germicidal lamp wiring method circuit diagram

Published:2011/4/6 21:22:00 Author:Ecco | Keyword: UV, germicidal lamp , wiring method | From:SeekIC

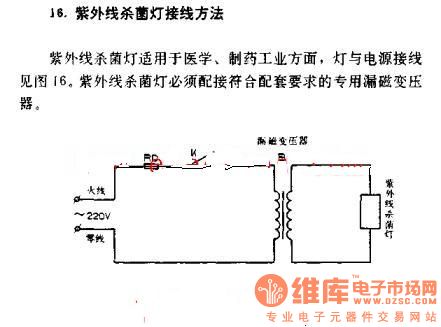

UV germicidal lamp wiring method UV germicidal lamps are suitable for medical, pharmaceutical industries, the connection between light and power is shown in Figure 16, UV germicidal lamp must connect with the special magnetic leakage transformer which meet the matching requirements.
