Telephone control automatic lighting circuit 1

Published:2011/4/25 4:30:00 Author:May | Keyword: Telephone control, automatic lighting | From:SeekIC

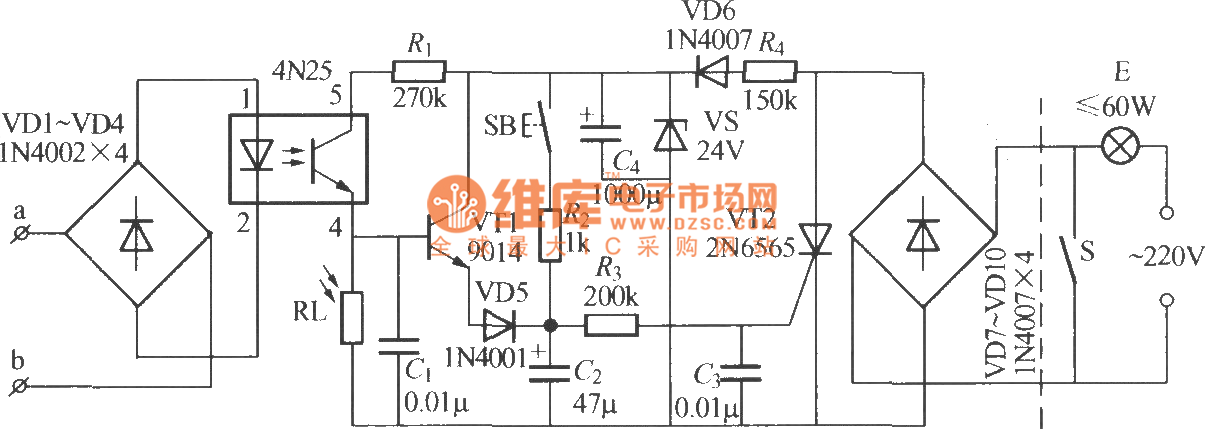

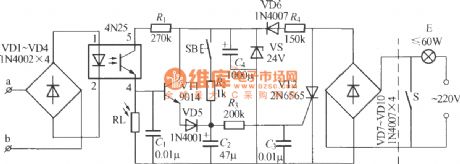

The diagram shows telephone control automatic lighting circuit. At night, when telephone rings or master takes up telephone transmitter dialing, the light can lighten; when telephone ringer stopped (no one listen) or on-hook, it can delay 10~40s, then the light can die out itself. Moreover, this circuit also set a light triggering button. The light can lighten about 40s only by pressing the button.
