Published:2009/7/14 4:39:00 Author:May | From:SeekIC

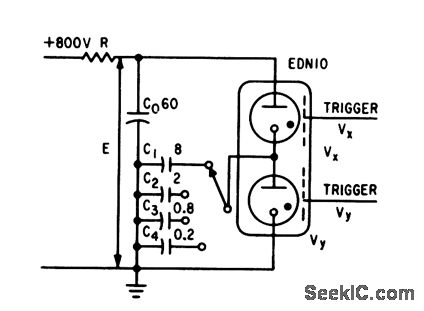

Two discharge tubes provide shared cycle of operation, to boost stroboscope firing rate to 1,000 flashes per second. tamp circuit, with range-switched discharge capacitors, receives triggers in alternation.-L. H. Barrett, New Circuit Improves Stroboscope Versatility, Electronics, 32:32, p 116-118.
