TRANSMITTER_OUTPUT_INDICATOR

Published:2009/7/9 5:38:00 Author:May | From:SeekIC

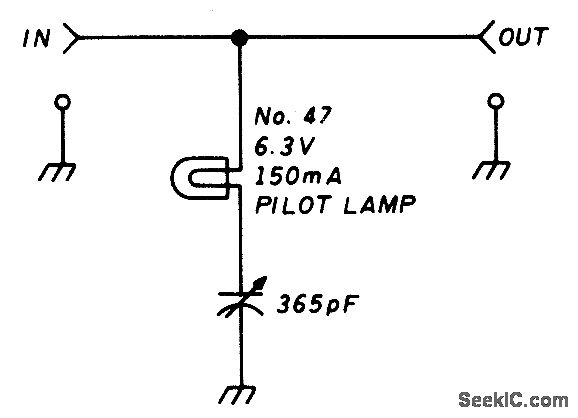

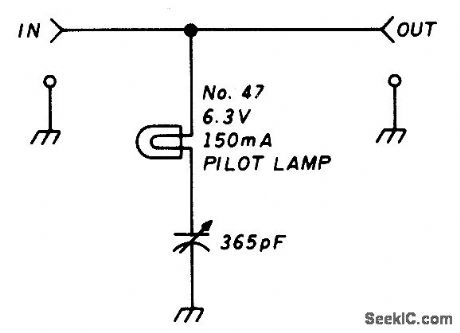

Relative power can be indicated with this simple circuit．Adjust the 365－pF variable capacitor fordesired lamp brightness.
