TRANSISTOR_BETA_DISPLAY

Published:2009/7/16 20:45:00 Author:Jessie | From:SeekIC

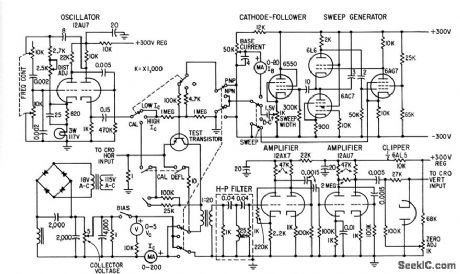

Falloff in beta with increasing collector current is displayed on auxiliary cro over range of 0 to 200 ma, for constant collector voltages up to 8 v.-R.Zuleeg and J. Lindmayer, Sweep Equipment Displays Transistor Beta, Electroics,31:49, p 100-101.
