TRANSISTORS_SWITCH_10_AMP_PULSES_FOR_LIGHT_EMITTING

Published:2009/7/14 4:28:00 Author:May | From:SeekIC

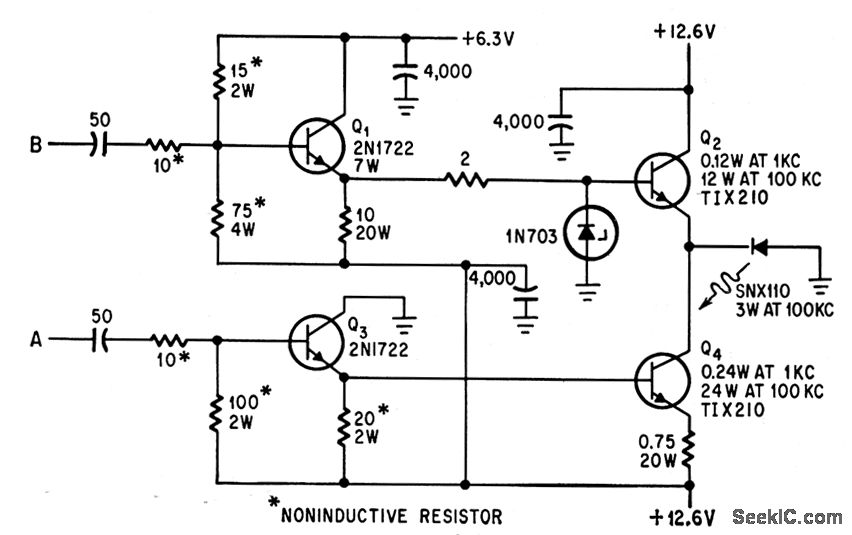

Input A must precede and follow B by 1 microsec to give 1-microsec width for 10-width for 10-amp pulses driving light-emitting diodes at repetition rates up to 100 kc.-E. L. Bonin, Drivers for Optical Diodes, Electronics, 37:22, p 77-82.
