TRANSISTORIZED_FLASHER

Published:2009/6/30 2:55:00 Author:May | From:SeekIC

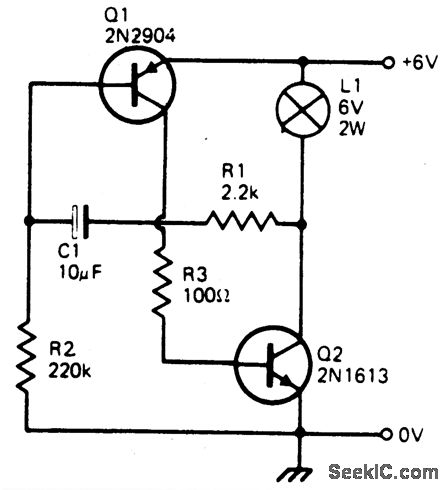

Circuit Notes This simple circuit will flash a 6 volt lamp at a rate determined by the size ofcapacitor C1.It is most economical on power as it only draws current when the lamp is on. When the lamp is off, both transistors are biased off.
