TIMER_DRIVES_LED_DlSPLAY

Published:2009/7/1 19:44:00 Author:May | From:SeekIC

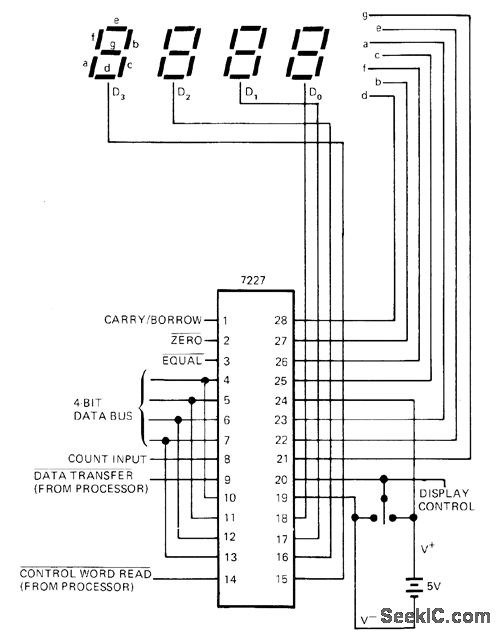

Intersil 7227 microprocesso-rcontrolled timer provides direct drive for LED display under supervision of microprocessor. Tristate 4-bit data bus serves to read in control word such as up/down, store reset, or load, then deliver counter data, feed in settable register word, or preset counter to initial value.-B. O'Neil, IC Timers-the Old Reliable 555 Has Company, EDN Magazine, Sept.5, 1977, p 89-93.
