Single-way flashing light string circuit (4 )

Published:2011/12/8 1:45:00 Author:Ecco | Keyword: Single-way, flashing light string | From:SeekIC

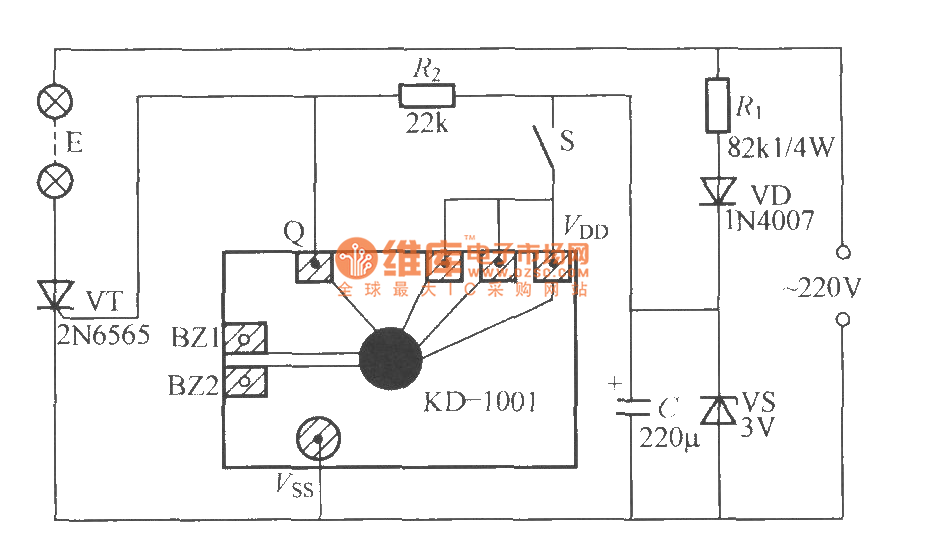

The circuit shown in the chart is the single-way flashing light stringcontroller which usesthe music integrated circuit for musical greeting cards, andthe circuit is simple, the flashing is satisfied.
