Simple dimmer circuit diagram

Published:2011/7/28 2:12:00 Author:Ecco | Keyword: Simple dimmer | From:SeekIC

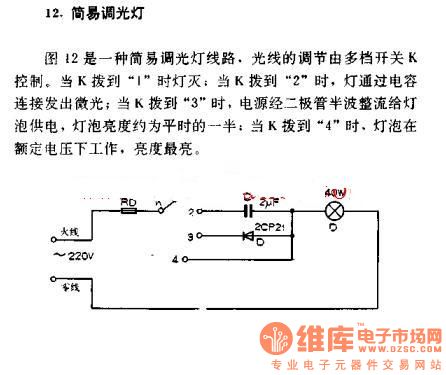

Simple dimmer Figure 12 is a simple dimmer circuit, the adjustment of light is controlled by the multi-file switch K, when K sets to 1 , the lights are off; when the K sets to 2 , the light is shinedby the capacitor connecting; when K sets to 3 , the power is supplied to the lamp through the diode half-wave rectifier, the lamp's brightness is about half of usual; when the K sets to 4 , the light bulb works in the rated voltage, the brightness is brightest.
