SS0619 Touching stepping dimmer circuit diagram

Published:2011/8/5 2:33:00 Author:Ecco | Keyword: Touching stepping dimmer | From:SeekIC

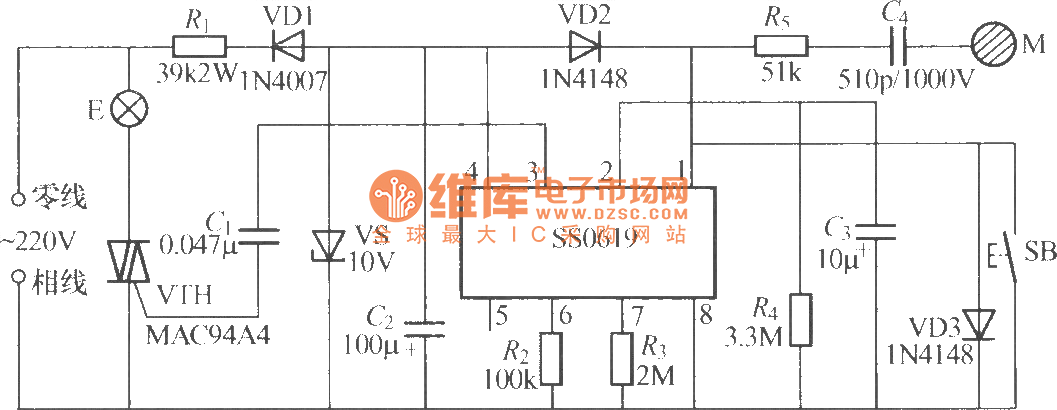

The touching stepping dimmer shown as the chart is composed of SS0619 IC, and it has touching and keying modes, which can make the brightness of E change optionally at the cycle of low, medium, bright, turning off .
