SS0614 Touching stepless dimmer circuit

Published:2011/8/5 2:38:00 Author:Ecco | Keyword: Touching stepless dimmer | From:SeekIC

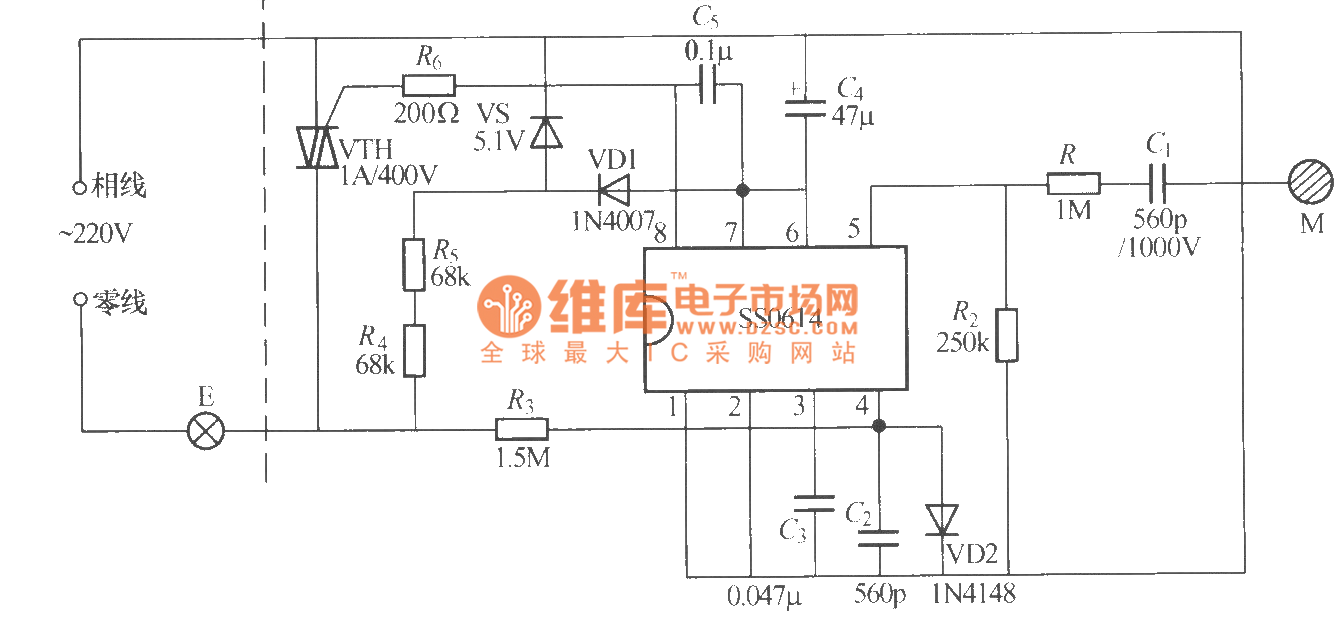

The touching stepless dimmer shown as the chart is composed of SS0614 IC, and it uses two-wire system connection, which does not need to change the original wiring in the room. Touching M can make the voltage on the two ends of the lampbe adjustablein 27 ~200V.
