SS0613 Touching stepless dimmer circuit

Published:2011/8/5 2:35:00 Author:Ecco | Keyword: Touching stepless dimmer | From:SeekIC

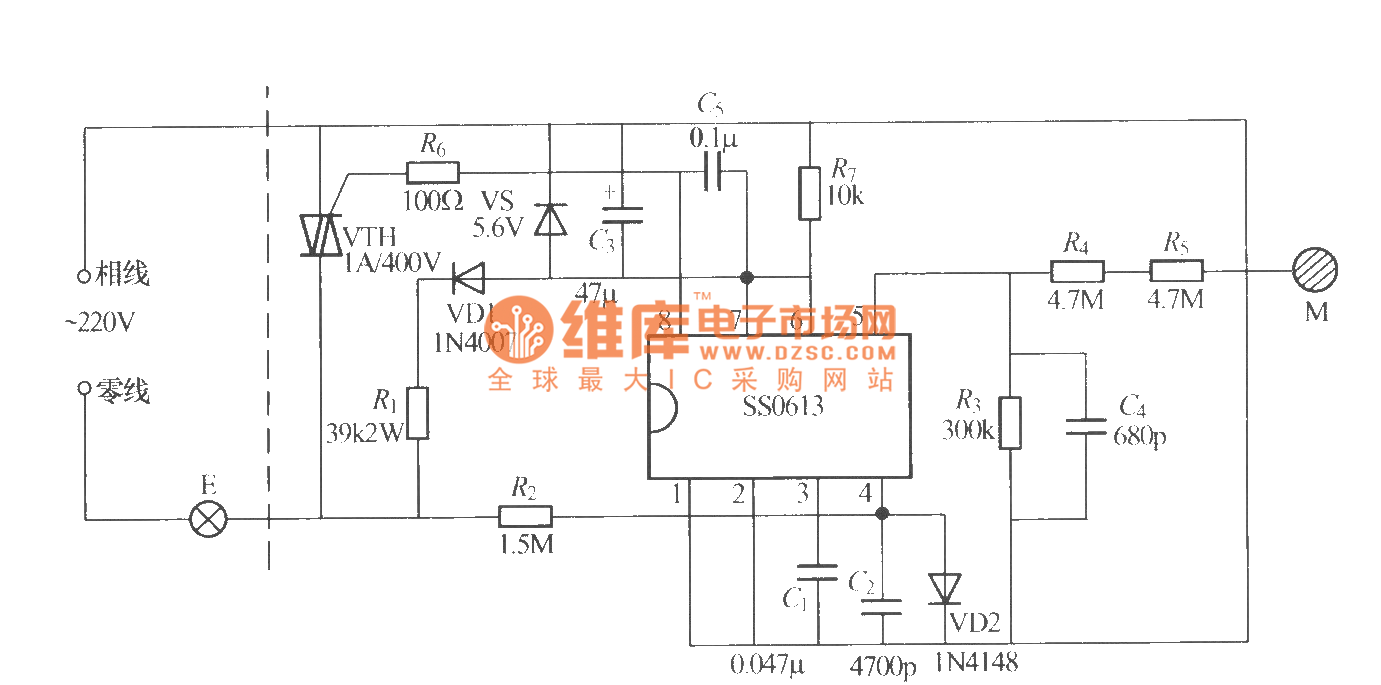

The touching stepless dimmer shown as the chart is composed of SS0613 IC, and it uses two-wire system connection, which can directly replace ordinary switch to transform the ordinary light into touching stepless dimmer.
