SINGLE_FLASH_LED

Published:2009/7/5 23:10:00 Author:May | From:SeekIC

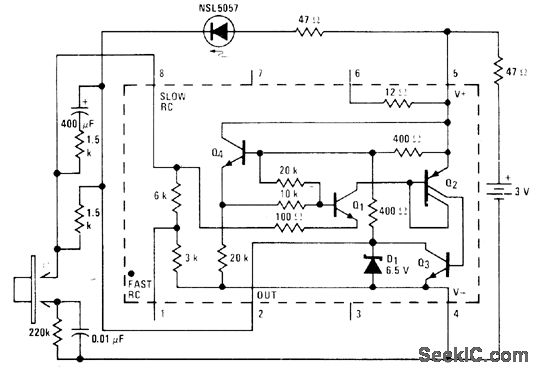

Mono MVBR connection of National LM3909 IC produces 0.5-s flash with LED each time pushbutton makes momentary contact.- Linear Applications, Vol. 2, National Semiconductor, Santa Clara, CA, 1970, AN-154,p 9.
