SCOPE_MIXER

Published:2009/7/20 4:12:00 Author:Jessie | From:SeekIC

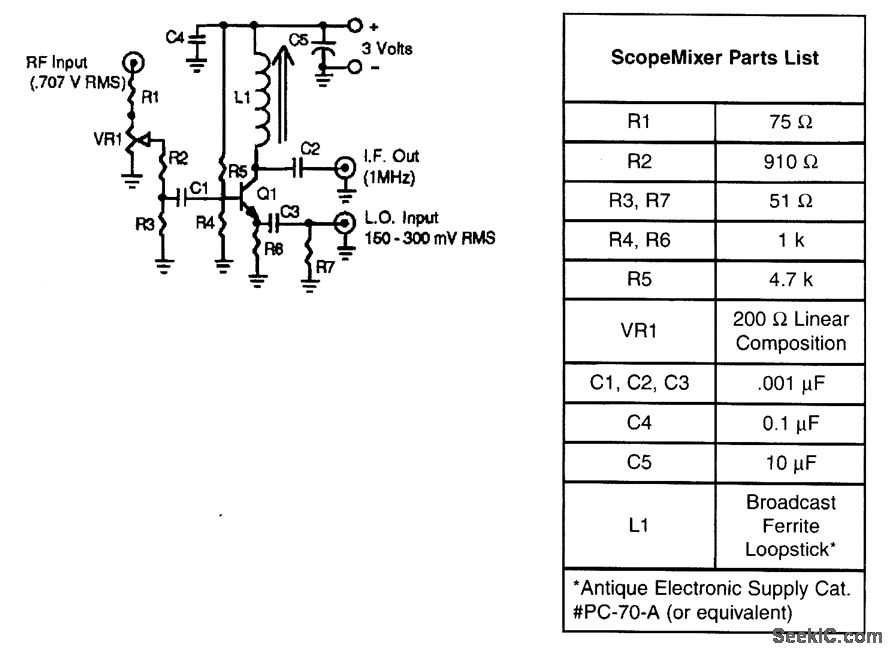

This circuit permits use of a low-frequency scope to view RF signals. The signal to be viewed is mixed with a LO signal about 1 MHz away and the IF output is viewed on the scope.
