Regulated Dual 3 Watt White LED Lamp

Published:2013/3/7 2:56:00 Author:Ecco | Keyword: Regulated, Dual, 3 Watt, White LED Lamp | From:SeekIC

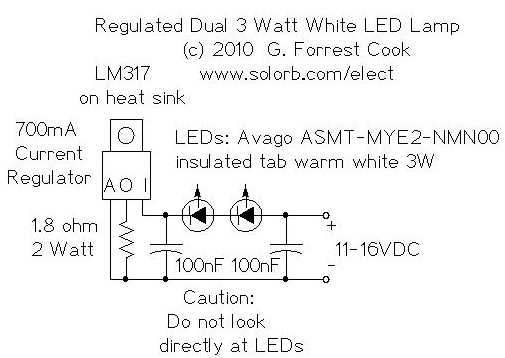

This project involves constructing an energy efficient dual 3 Watt white LED array that runs on 12VDC at 700mA. The lamp is useful for indoor indirect room lighting. The light that is produced does not flicker and has a regulated brightness from 11V to the maximum operating voltage. The Avago 3W white LEDs are rated at 3 watts (nominal). Never stare directly at this lamp when it is running at full operating power, it is dangerously bright.
