RECEIVER_SIGNAL_STRENGTH_INDICATOR

Published:2009/6/19 3:58:00 Author:May | From:SeekIC

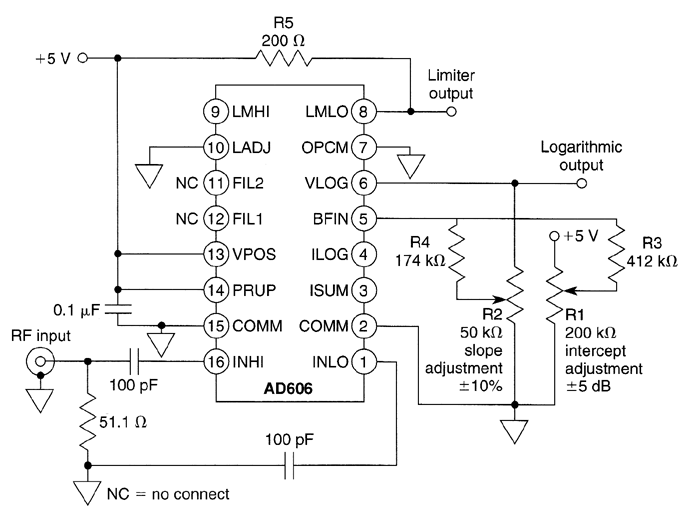

Using an AD606 log amplifier, this indicator gives a logarithmic output of +0.3 V at -80-dBm in-put to +3.5 V at 10-dBm input. Frequency range is to 50 MHz for this IC device.
