RANDOM_LED_STROBE

Published:2009/6/19 2:40:00 Author:May | From:SeekIC

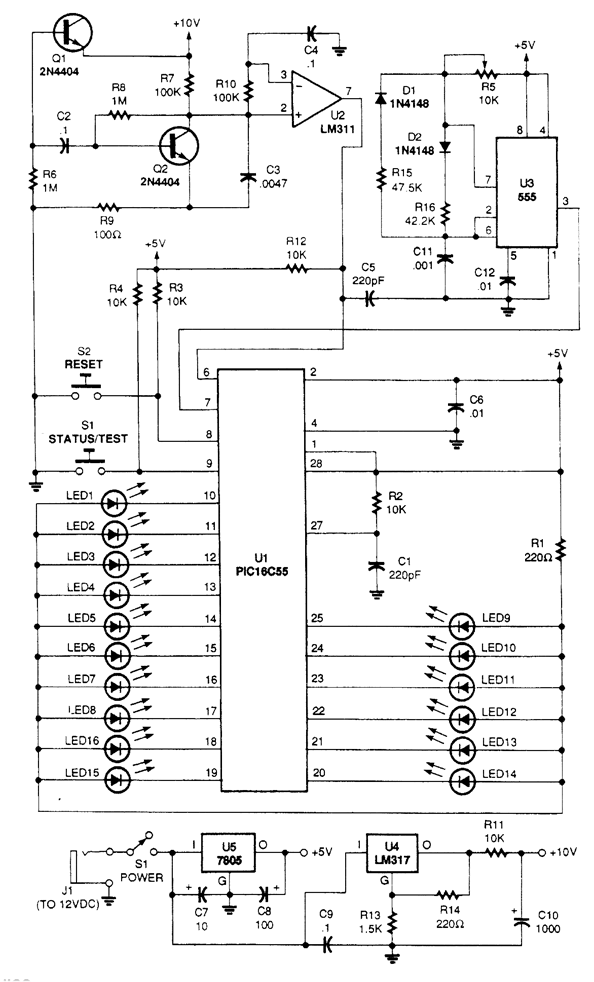

This circuit generates a random output that is translated into LED movement by a prepro-grammed PIC16C55 microcontroller, U1. That PIC also senses and records the bias of the LED's movement. This device was originally used for an application involving psychokinesis testing where the person was asked to think the lights in either a clockwise or counterclockwise direction.
