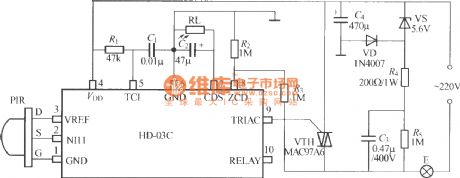

As shown in the figure, it is pyroelectric infrared sensor automatic light with dedicated module, so the circuit is very simple. HD-03C is the pyroelectric infrared -specific module produced by Xianju Yongling electronics factory in Zhejiang, it contains all pyroelectric infrared processing circuits, and it can work as it is connected with a pyroelectric infrared sensor PIR.
