Photoelectric lighting circuit diagram

Published:2011/7/28 2:11:00 Author:Ecco | Keyword: Photoelectric lighting | From:SeekIC

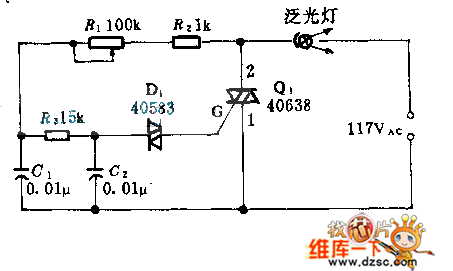

Influenced by bidirectional triode thyristor Q1 and disconnect rock, bidirectional switching LED D1, and potentiometer R1, the circuitry can connect 500w lamps, and the light could be turned on absolutely. Using a 5A rapid safety machine to connect lamps in series, it can avoid the current from breaking bidirectional Hiccup controlled silicon by the current at short circuit.
