PHOTOREED_OSCILLATOR

Published:2009/7/20 12:28:00 Author:Jessie | From:SeekIC

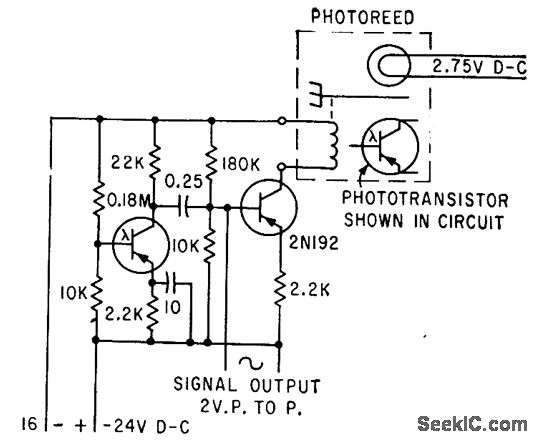

Gives good sinewave output at reed frequency, using phototransistor to sense chopped light and transistor to boost output voltage. Can be used for remote control, telemetry, and logic functions.-Frequency-Sensitive Control Uses Light, Electronics, 34:36, p 88-91.
