PHOTOELECTRIC_GAGING

Published:2009/7/20 10:36:00 Author:Jessie | From:SeekIC

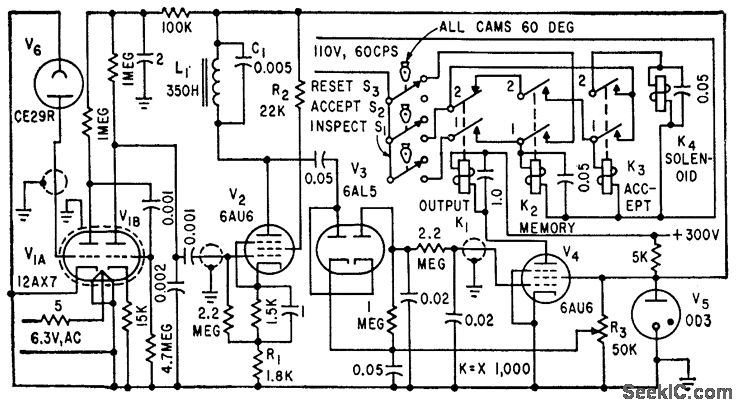

Checks dimensions of machine parts while they are rotating. Fail-safe circuit assures that only satisfactory pieces are accepted. Sorter is initially calibrated to desired sensitivity with go and no-go gages.-J. C. Frommer, Fail-Safe Photoelectric Inspection for Industry, Electronics, 32:31, p 74-75.
