OPTICAL_PUSH_PULL_COUPLING

Published:2009/7/20 12:35:00 Author:Jessie | From:SeekIC

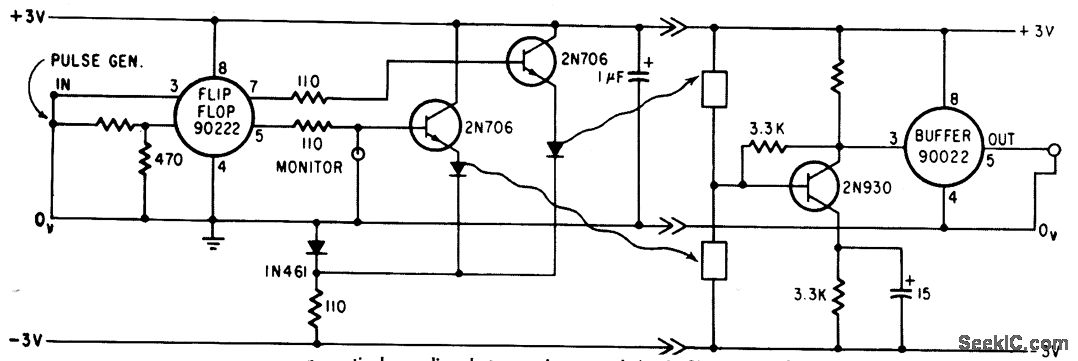

Two gallium arsenide light sources and two high-speed silicon photoconductors provide push-pull optical coupling between integrated-circuit flip-flop ond buffer, with two transistors in push-pull amplifier overcoming losses of optical coupling.-T. E. Bray, Switching With Light, Electronics, 38:22, p 58-65.
