Published:2009/7/20 10:10:00 Author:Jessie | From:SeekIC

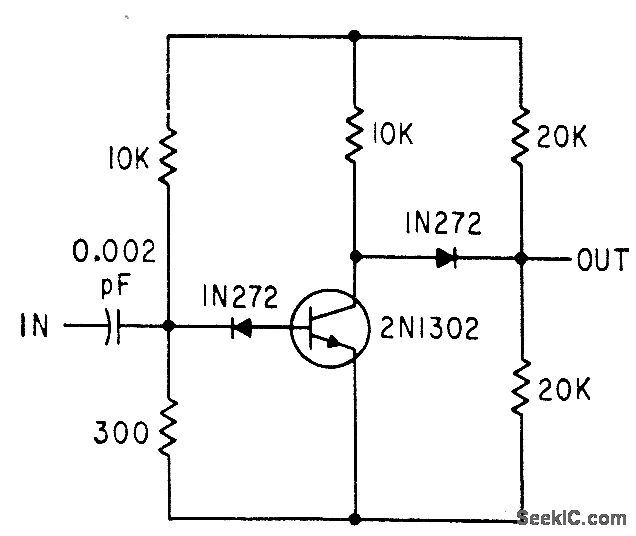

Removes noise from output of photodiode used in reflected-light shaft-position encoder. -F. W. Kear, How to Select Shaft-Position Encoders, Electronics, 35:35, p 48-51.
