MODULATED_LIGHT_RECEIVER

Published:2009/6/16 23:48:00 Author:May | From:SeekIC

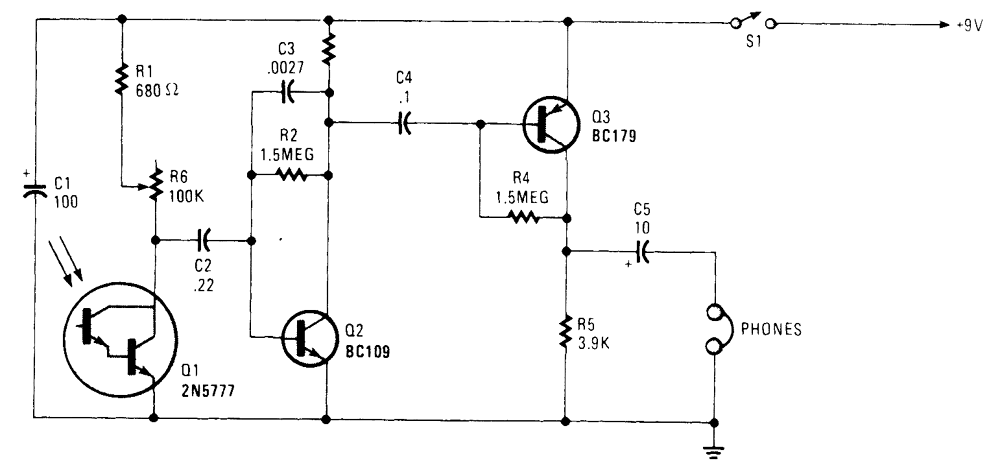

Using a phototransistor, this receiver will detect and demodulate a modulated light beam. R6 af-fects sensitivity.
