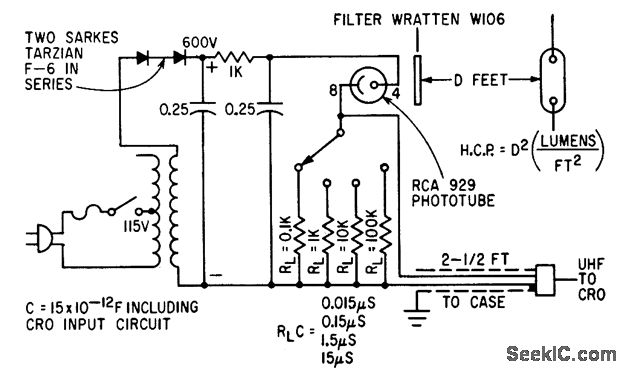

Used with cro for measuring rapidly changing light output of flashlamps.-H. E. Edgerton and R. O. Shaffner, Measuring Transient Light With Vacuum Phototubes, Electronics, 34:34, p 56-57.
