LS7232 touch stepless dimming light circuit

Published:2011/4/18 8:34:00 Author:Nicole | Keyword: stepless dimming light | From:SeekIC

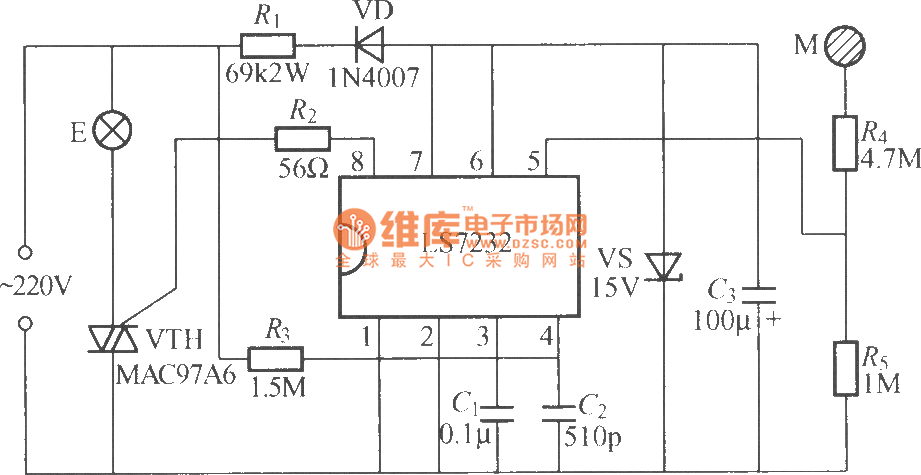

The figure is as shown, it is a touch stepless dimming table light circuit adopts LS7232 integrated circuit, LS7232 is a touch dimming special IC produced by US LSI Company, S567 and 5G7232 have the same functions with it, they can be exchanged to use directly.
