LOW_COST_LAMP_DIMMER

Published:2009/6/25 1:59:00 Author:May | From:SeekIC

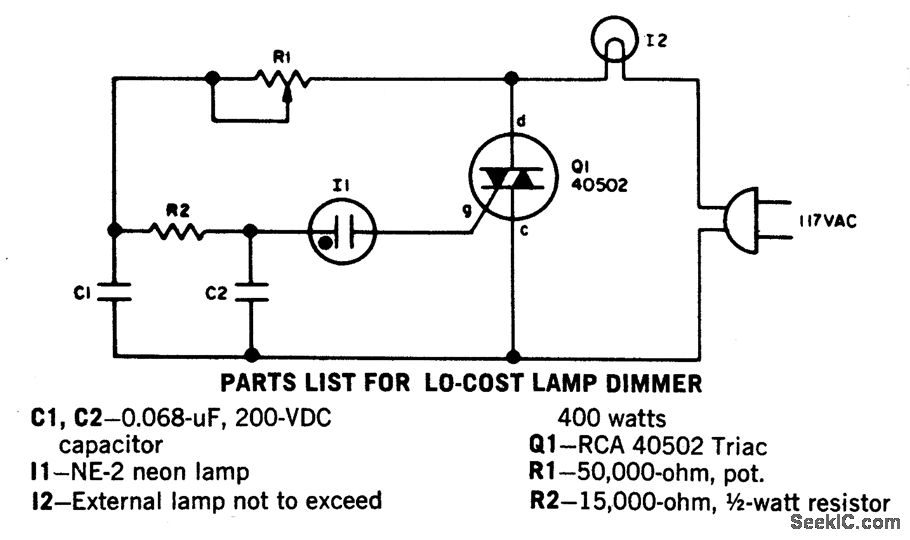

Without a heatsink, Triac Q1 handles up to a 400-watt lamp. The neon lamp does not trip the gate until it conducts so the lamp turns on a medium brilliance. The lamp can then be backed off to a soft glow.
