LIGHT_RECEIVER

Published:2009/7/10 1:52:00 Author:May | From:SeekIC

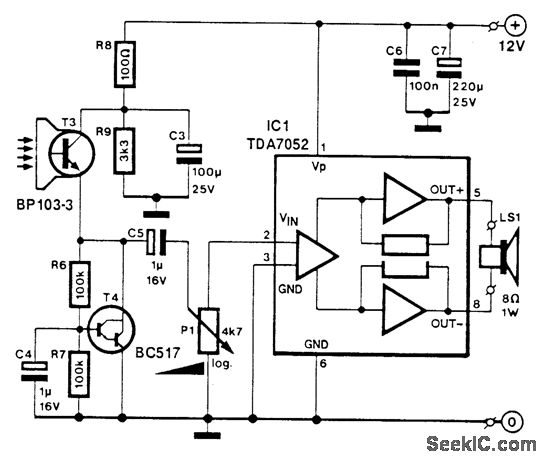

T3 is a photocell or phototransistor. T4 controls the emitter voltage of T3. IC1 is an audio amplfier to provide amplification of the signal from the photocell.
