LED mains supply indicating circuit diagram

Published:2011/8/3 2:34:00 Author:Ecco | Keyword: LED , mains supply indicating | From:SeekIC

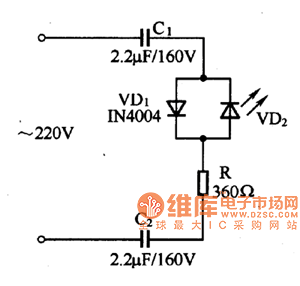

C1 and C2 in the circuit play the role of ballast and buck, andR is used for obstructing the transient inrush current. The circuit has low power consumption, reliable advantages, and it is suitable for electronic equipment as the instructions for mains supply.
