LED_PULSER_WITH_AUDIBLE_OUTPUT

Published:2009/6/19 2:49:00 Author:May | From:SeekIC

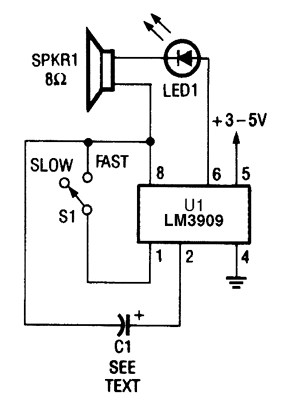

The LM3090 can also be used to drive both an LED and a speaker. In this circuit, each time that LED1 blinks, SPKR1 (an 8-Ω speaker) emits a sharp click sound.
