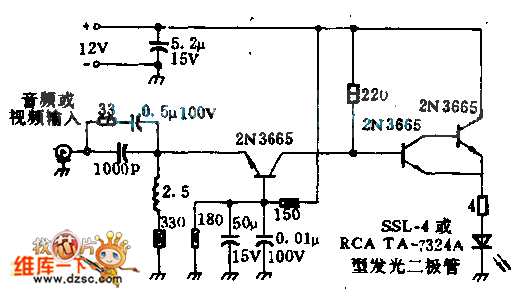

This circuit uses the overlay typetransistors. This transistor's transmitting area is made up by several little transmitting area. And there is a layer of metal overlaying on it to make the transmitting area connected. So it could get large-power outputunder high-frequency conditions.
In this circuit it is requiredshielding. In communication system it can be used to modulate thebeam of light.
