KEY_ILLUMINATOR

Published:2009/6/19 4:42:00 Author:May | From:SeekIC

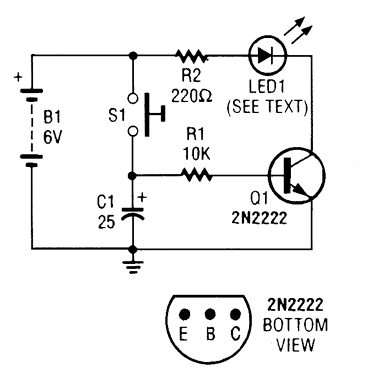

Used as a 10-second momentary illuminator, this circuit can be useful in other applications as well. Pressing S1 charges C1, which holds Q1 on and holds the LED lit for about 10 seconds.
