INTERIOR_CONVENIENCE_LIGHT

Published:2009/7/9 4:53:00 Author:May | From:SeekIC

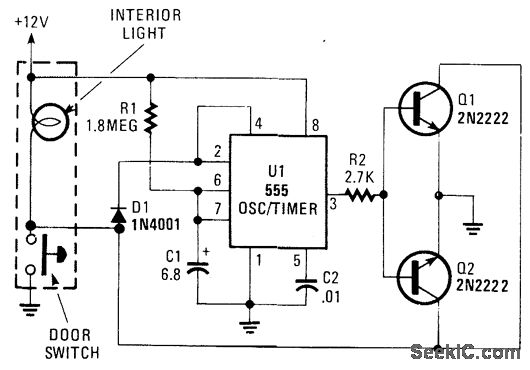

When the door is closed, this circuit keeps the dome light on for a period determined by R1/C1. The time is approximately (1.1)R1 x C1.
