INDICATOR_LAMP_DRIVER

Published:2009/7/8 22:43:00 Author:May | From:SeekIC

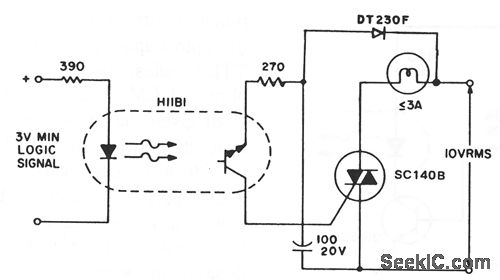

A simple solid-state relay circuit drives the 10-Vac telephone indicator lamps from logic circuitry, while maintaining complete isolation between the 10-V line and the logic circuit.
