Homemade 20W fluorescent lamp dimmer circuit diagram

Published:2011/4/6 21:39:00 Author:Ecco | Keyword: Homemade , 20W, fluorescent lamp , dimmer | From:SeekIC

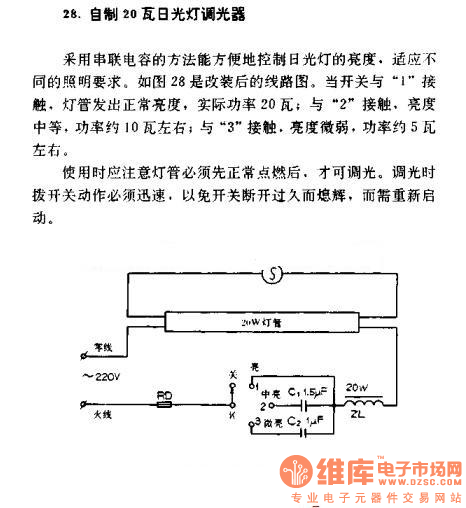

Homemade 20W fluorescent lamp dimmer Using the method of connecting capacitor in series can easily control the brightness of fluorescent lamps. To adapt to different lighting requirements. Figure 28 is a modified circuit diagram. When the switch connects to the 1 , the brightness of the lamp is normal, the actual power is 20w; and connects to 2 , brightness is medium, power is about 10w; and connects 3 , the brightness is faint, and the power of about 5w. We should pay attentionon the lamp must belit properly before dimming. Dimming dial switching action must be fast, or the light will be turned off when the switch opening too long, and the switch needs to re-start.
