Published:2012/9/6 20:37:00 Author:Ecco | Keyword: High Power, LED Flasher | From:SeekIC

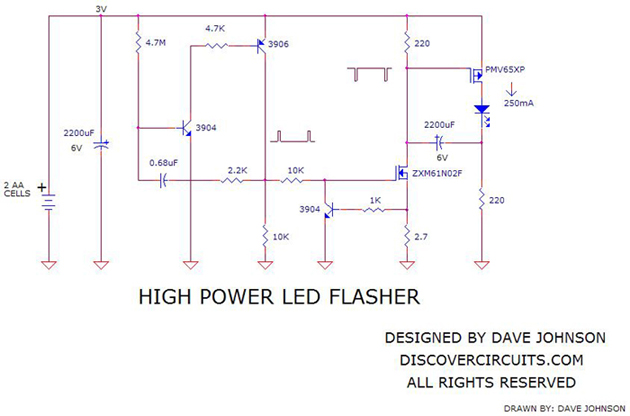

Power LEDs are becoming more popular these days. The DC input power to these devices ranges from 1 watt to 5 watts. Normal LEDs only receive about 0.05 watts. At this higher power, these devices can emit a lot of light. You can buy them in just about any color in the rainbow but white seems to be the most popular. One application for these devices is a flashing light. If the flash duration and flash rate is kept low, the average current can be low enough that even a small battery can last quite a while.
Source: discovercircuits
Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/LED_and_Light_Circuit/High_Power_LED_Flasher__August_3_2008.html
Print this Page | Comments | Reading(3)
Code:
