HT7704 Touching stepping dimming light circuit

Published:2011/7/18 19:13:00 Author:Lucas | Keyword: Touching stepping , dimming light circuit | From:SeekIC

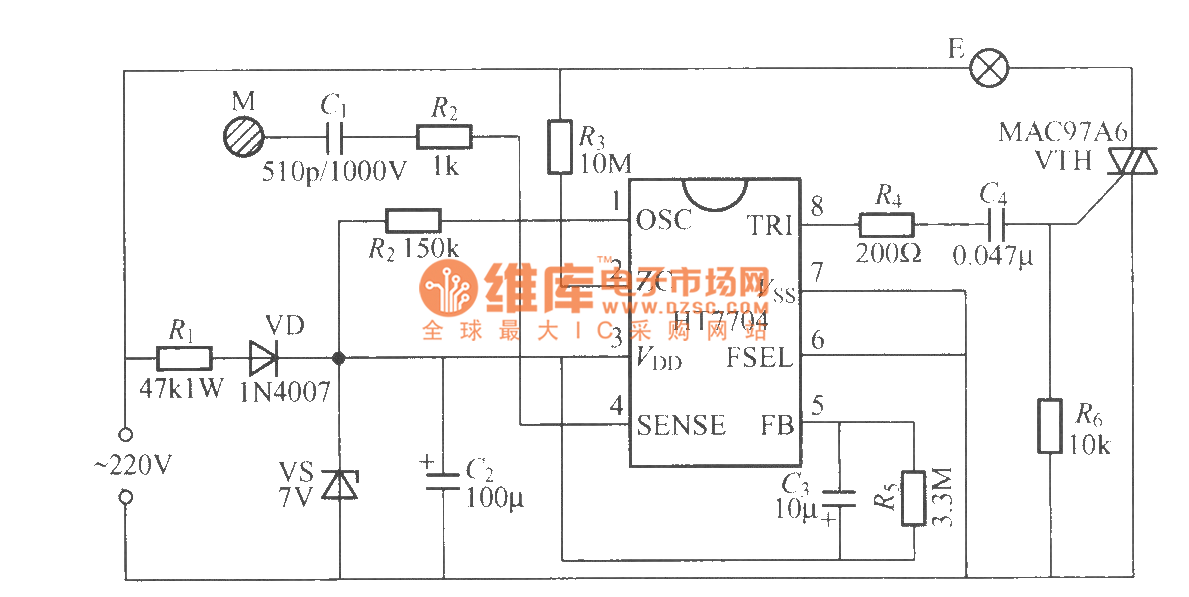

The touching stepping dimming light circuit shown aschartis composed of HT7704 integrated circuit, andHT7704 is a series of products, which has HT7704A, HT7704B and HT7704C. HT7704A is the three-step touch dimmer, and HT7704Bis the four-step touch dimmer, thenHT7704C is the two-step dimmer, that is touching on / off control, and these three application circuits arethe same.
