GAS_TUBE_READOUT

Published:2009/7/15 21:39:00 Author:Jessie | From:SeekIC

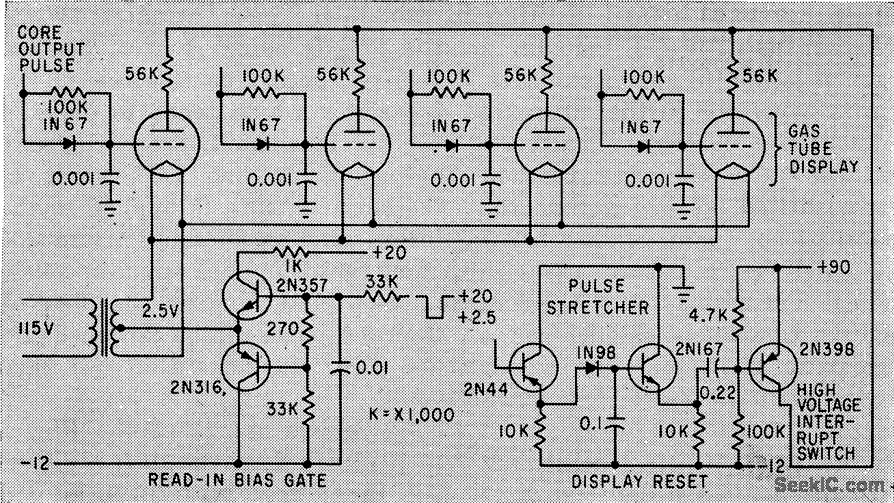

Thyratron display tubes (Kip Memolites) remain on until next input sync pulse occurs. Static delay one. shot is then triggered, to extinguish display bulbs by dropping their plate voltage below ionization point. Bulbs ore extinguished only when new input information is to be received. Used in converting up to 13 bits from Gray code to straight binary.-R. Wasserman and W. Nutting, Solid. State Digital Code-to-Code Converter, Electronics, 32:50, p 60-63.
