GAS_DISCHARGE_TUBE_OR_DISPLAY_DRIVER

Published:2009/6/15 23:47:00 Author:May | From:SeekIC

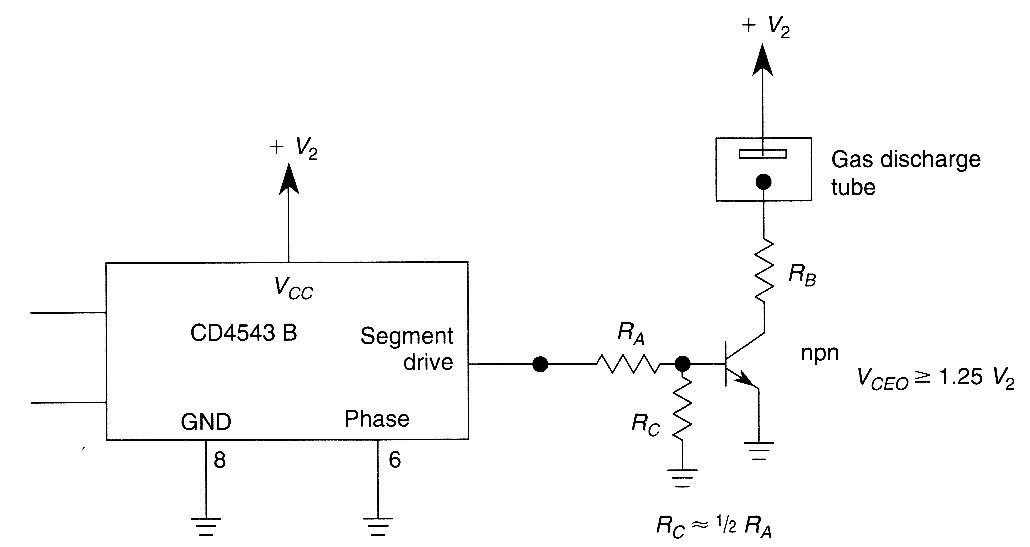

To drive the display, RA should provide a drive of about 1 mA to the gas discharge tube. RB is a current-limiting resistor.
