Four-way flashing light string circuit ( 1 )

Published:2011/12/8 1:42:00 Author:Ecco | Keyword: Four-way , flashing light string | From:SeekIC

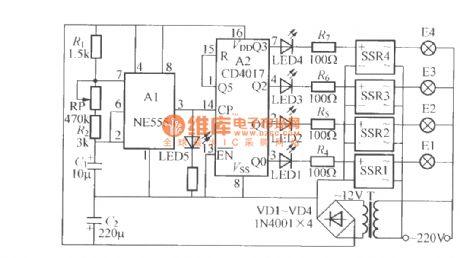

The circuitshown in the chart is the 4-wayflashing lights string controllerwhich uses a solid relay anddigital and other components, and the output power is larger, each driving power is up to 600W. SSR1 ~ SSR4 use SP110 solid-state relays.
