FLIP_FLOP_FLASHER

Published:2009/6/30 2:43:00 Author:May | From:SeekIC

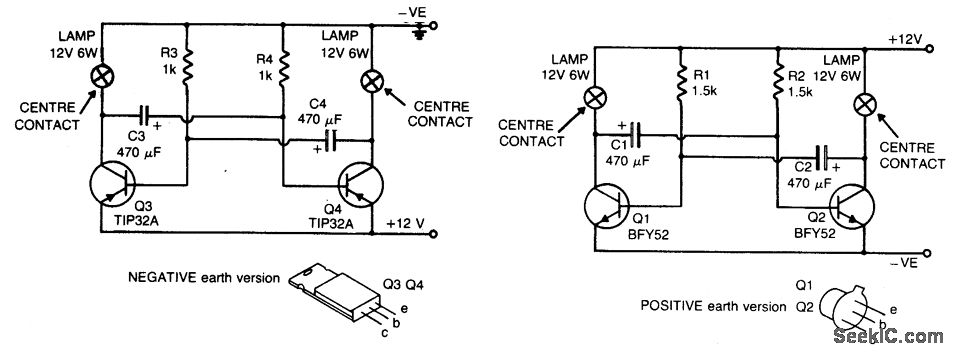

Circuit Notes The flashing action is provided by a simple astable multivibrator timed to give a flashing rate of about 60 flashes for each lamp per minute. Circuit for positive earth systems uses NPN transistors. The other uses PNP transistors.
