FLASH_TUBE_DRIVE

Published:2009/7/14 4:39:00 Author:May | From:SeekIC

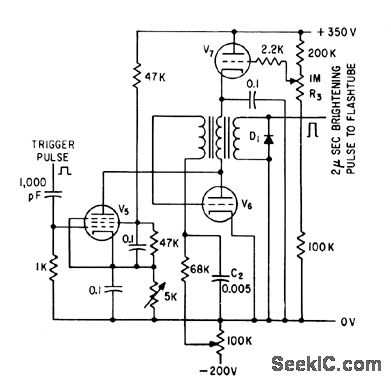

Generates low-impedance positive pulses having adjustable amplitude but constant durcttion, for driving flash tube to give same intensity-time characteristic as other fiash tubes having different colors.-P. Scott, Microflash and Pulse Stimulator Tests Human Optical Response, Electronics, 34:27, p 48-51.
