FLASH_ACTUATED_SCR_DELAY

Published:2009/7/20 12:29:00 Author:Jessie | From:SeekIC

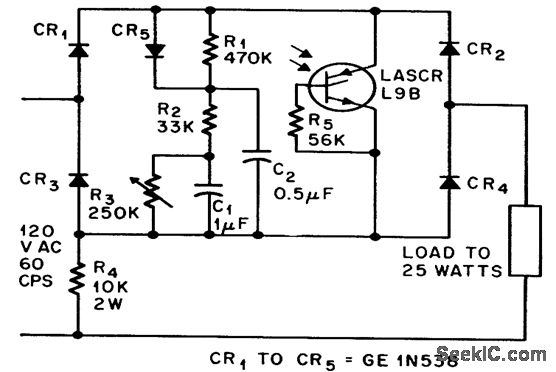

Fractional-cycle light pulse fires glass-window scr at any phase angle, while values of circuit components determine number of cycles of conduction before turn off at zero current.-E. K. Howell, Light-Activated Switch Expands Uses of Silicon-Controlled Rectifiers, Electronics, 37:15, p 53-61.
