Electronic energy saving lamp (3)

Published:2011/6/30 2:08:00 Author:Ecco | Keyword: Electronic, energy saving, lamp | From:SeekIC

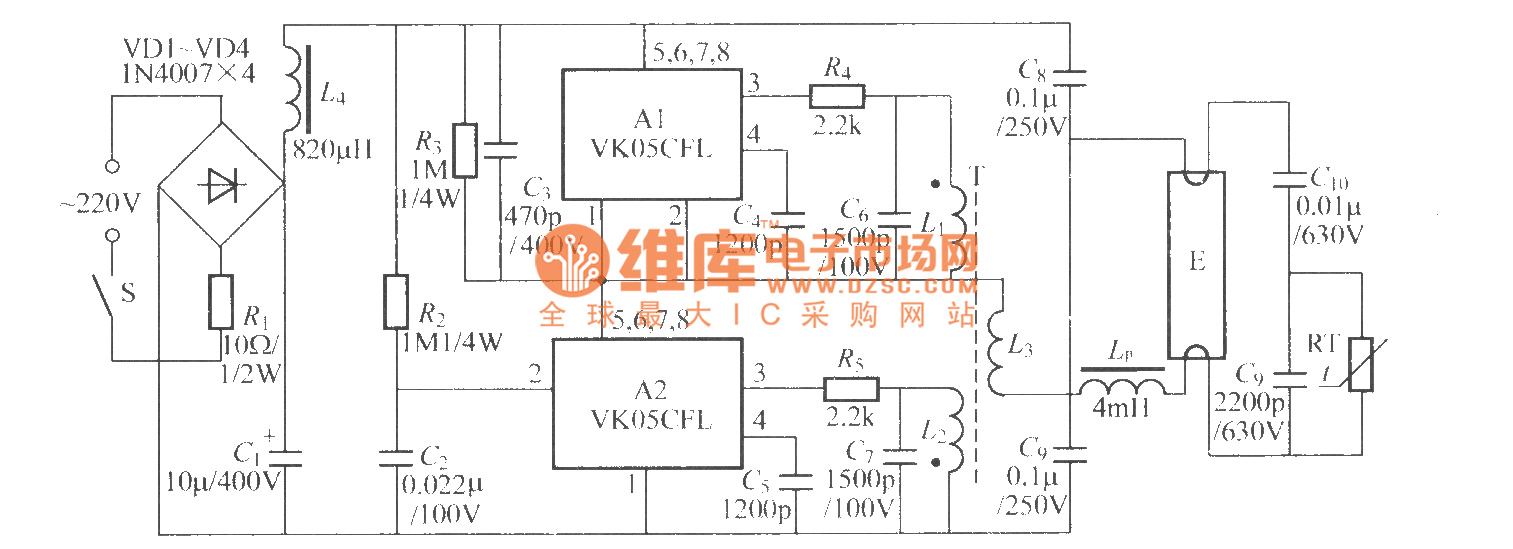

In the circuit shown as the chart, T uses E5 ferrite core with Φ0.2mm high-intensity polyester wire, and L1, L2 have about 12 to 30 turns, and L3 has 200 turns; RT uses RTC thermistor, such as MZ11B, MZ64 types.
